Airtag Holder: A CAD exercise in precision

Available as a Product on the Downloads page

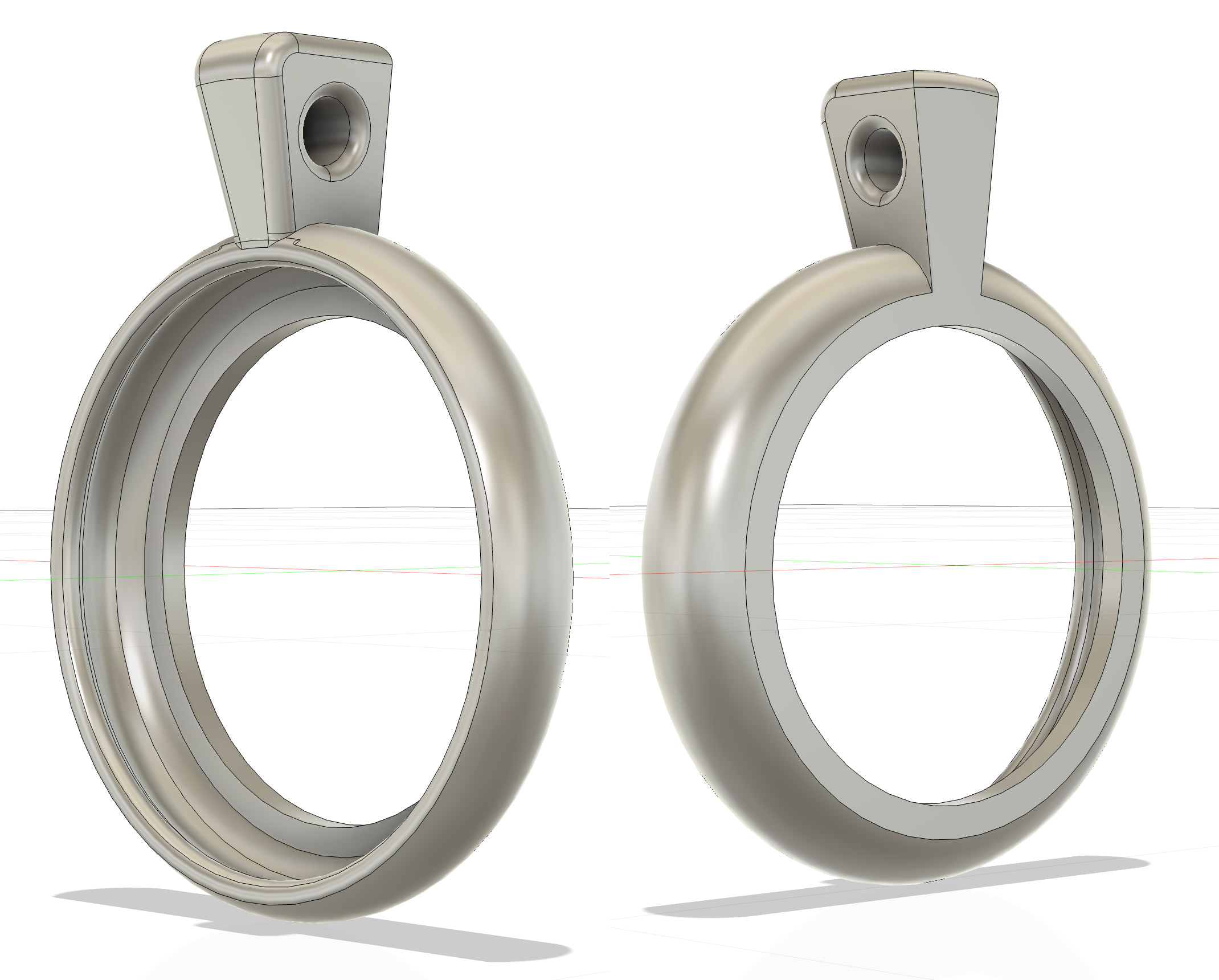

In mold making, precision is important. Often this means cycling between a test print and design refinement until the right-fitting piece is achieved. These AirTag holders are an excellent exercise in refining a size, the tag either won't snap in, or it won't fit tight enough to stay in, if you don't have exactly the right size. This is where I first came to appreciate how accurate 3D printers can be. Changing the inner diameter a tenth of a millimeter makes the difference between a poor and good fit! Why do these? Because all holders I could find have the keyring hole perpendicular to the tag, this does work if you want to put your keys in your pocket. The few like this have a keyring hole tab that is not big enough to achieve the needed strength. Of course, print this solid, back-side down.

Tap picture for full size and resolution

Available as a Product on the Downloads page
